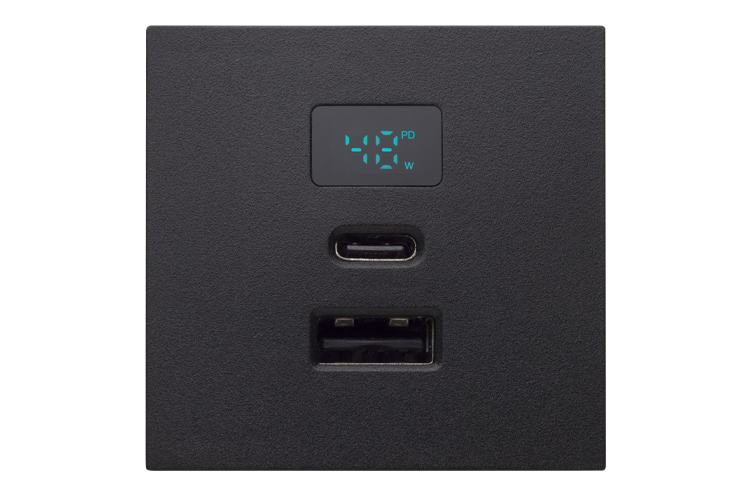

USB Type-C + USB-A 48W PD Charger Modules
This D4 combination USB-A + USB Type-C 48Watt Super-Speed Fast charger with intelligent digital LED Power Display is the ideal solution for charging two devices simultaneously.

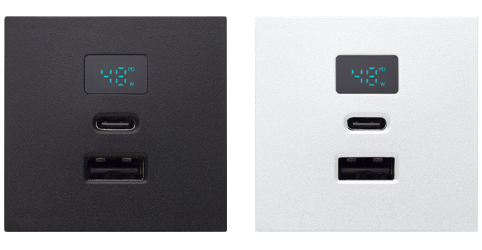

Colour Options
Available in Black and White.
Features
- Intelligent digital LED Power Display indicating the Power Delivery (PD) charging in Watts, for the real time monitoring of the power output at a glance.
- Latest Fast Charging Technology USB Type-C, USB-IF Power Delivery (PD) and Qualcomm Quick Charge (QC) with Power Dynamic Allocation Function. This means that when both ports are used, the Smart chip inside ensures that each device connected, has the optimum charging power level needed.
- Purpose Built for charging single power-hungry devices, such as Laptops or multiple electronic devices like Smartphones and Tablets without an external power supply, quickly and safely.
- The USB-A connector is Bi-directional, a feature unique to D4. This means that you can rotate the plug either way and it will still plug in first time.
- The USB Type-C is now the universal port on most electronic devices and is also Bi-directional.
- USB Type-C connector tested to meet the industry requirement to withstand over 10,000 insertions and withdrawals.
- Peace of mind with Temperature, Over Current, Over Voltage and Short Circuit Protection.
- Can be integrated into any Powerset series from the D4 Range.
Specifications
Power Source (Input) 100-240V / AC
Power Amperage: 1.2A
Power Frequency: 50/60 Hz
Single Output when used independently
USB Type-C 48Watts:
- PD : 5V/9V/12V/15V 3A and 20V 2.44A
- QC : 5V 3A 9V 2A 12V 1.5A
USB-A 18Watts:
- QC : 5V 3A 9V 2A 12V 1.5A
Output when used simultaneously in fast charging USB Type-C 30Watts + USB-A 18Watts = 48Watts
*the quality of cable is also an important factor to consider
Approvals
- South Africa Letter of Authority LOA certificate number: 203221
- SANS IEC 60950-1
- SANS IEC 62368-1
- IEC 61000-3-2
- IEC 61000-3-3
- CISPIR 32: 2015
- CISPIR 35: 2016
