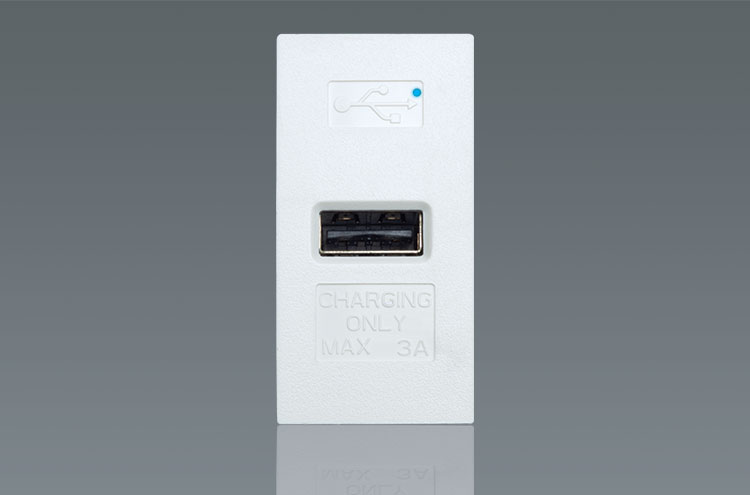

USB-A 18W QC Charger Modules
D4 High specification 18W conditioning charger.
D4 fast charging module for mobile devices/tablets
(3.0 Amp for USB devices).
Bi-directional USB-A socket, unique to D4.
Power indicator LED with Auto On/Off.
Options
Black
White
Features
- USB-A QC18W fast charging for mobile phones/tablets (Example – latest Samsung/Huawei from 0% to 50% in 30 mins).
- Fast Charging Technology: Qualcomm QC (quick charging).
Compatible protocol:
QC3.0/QC2.0/AFC/FCP/BC1.2/Apple 2.4A. - Power overload protection.
- Temperature overload protection.
- Over Current Protection (OCP);
Over Voltage Protection (OVP);
Short Circuit Protection.
Specifications
Input:
18Watt, 100-240V~ 0.5A, 50/60Hz
Output:
USB - PD 5V/3A; 9V/2A; 12V/1.5A
USB - QC3.0 output range: 3.6Vdc ~ 12Vdc
| Output Mode | Output Voltage | Max. Load | Output Power |
|---|---|---|---|
| Standard Mode | 5V dc | 3A | 15W |
| Smart Mode (Automatic) | 9V dc | 2A | 18W |
| 12V dc | 1.5A | 18W |
Approvals
- IEC 60950-1
- IEC 62368-1
- IEC 61000-3-2
- IEC 61000-3-3
- CISPR 32:2015
- CISPR 35:2016
- South Africa letter of Authority LOA certificate number: 164404
